- Product Description
-
Details
Uses
High wear-resistant, energy-saving multi-layer fabric core conveyor belts are especially suitable for mining, stone crushing and screening, sand washing, ports, power plants, metallurgy, chemical industry, coal, steel plants, cement plants, construction and other industries. They are suitable for most medium/long distances, high loads, and high-speed material conveying conditions.
Features
1. Energy saving: Improves rubber elasticity and reduces transmission friction coefficient, saving 10%-15% of electricity.
2. Wear-resistant: The surface coating has high elasticity, good wear resistance, high strength, excellent fatigue resistance, high strength, impact resistance, good belt troughing, high bonding strength of multi-layer fabric core, and long service life.
3. Types: Can be manufactured to produce heavy-duty multi-layer fabric core conveyor belts with high tensile strength, general-purpose/wear-resistant/oil-resistant/heat-resistant/cold-resistant/acid and alkali-resistant/flame-retardant/anti-static types.
4. Specifications: This is a multi-layer fabric core rubber conveyor belt made of weft and warp structured by (nylon/EP/NN/EE/polyester) fabric core and SBR/NBR/EPDM rubber. We are a manufacturer of heavy-duty industrial fabric rubber conveyor belts. This fabric core conveyor belt is known for its unique high-strength resistance, fatigue resistance, wear resistance, durability, and energy saving. It meets the needs of medium/long-distance transportation under various industrial and mining conditions and is used in most industries.
Application Areas
Our multi-layer fabric rubber conveyor belts are especially suitable for mining, chemical fertilizer, power plants, cement plants, steel plants, metallurgy, coal, grain, chemical industry, ports, construction and other industries. They are suitable for most short/medium/long distances, high loads, and high-speed material conveying conditions.
Specifications and Technical Data
Fabric Type Fabric Structure Fabric Specifications Thickness Strength (N/mm) Cover Thickness Width Length Warp Weft mm/ply 2ply 3Ply 4ply 5ply Top Bottom mm m Nylon
EP Polyester
NN
EE
Polyester Polyamide Nylon/EP Polyester/NN/EE80 0.95 160 240 320 400 1.5-12
0-4.5
400-2500 50-500 Nylon/EP Polyester/NN/EE100 1 200 300 400 500 Nylon/EP Polyester/NN/EE150 1.1 300 450 600 750 Nylon/EP Polyester/NN/EE200 1.2 400 600 800 1000 500-2500 Nylon/EP Polyester/NN/EE250 1.35 500 7500 1000 1250 Nylon/EP Polyester/NN/EE300 1.45 600 900 1200 1500 Nylon/EP Polyester/NN/EE350 1.6 - 1050 1400 1750 800-2500 Nylon/EP Polyester/NN/EE400 1.75 - - 1600 2000 1000-2500 Nylon/EP Polyester/NN/EE500 1.9 - - 2000 2500 Nylon/EP Polyester/NN/EE630 2.1 - - 2400 3000 Conveyor Belt Adhesion and Elongation
Bonding Strength Elongation Between plies (N/mm) Between rubber Longitudinal elongation at %≥ Longitudinal elongation at reference load %6s Nylon/EP Polyester/NN/EE Conveyor Belt
≥5 ≥5 10 2 Cover Rubber Quality/Grade Standard Performance Parameters
Cover Grade Tensile Strength Elongation Wear Tensile strength and elongation after aging Standard ≥ ≥ ≤ MPA % MM3 % M 24 450 125 -50 Australian Standard AS1332-2000 N 17 400 200 -50 RMA1 17 400 175 -50 American Standard RIMA2 14 350 250 -50 Z 15 350 250 -50 German Standard DIN22102 Y 20 400 150 -50 X 25 400 120 -50 W 18 400 90 -50 C 10 150 200 -50 Russian Standard N 15 400 100 -50 T2 14.7 300 200 -50 M 14.7 350 150 -50 Packaging Details
1. Waterproof nylon packaging, with bottom steel pallet or wooden pallet.
2. Standard and appropriate export packaging.
3. Packaging can be customized according to customer requirements.

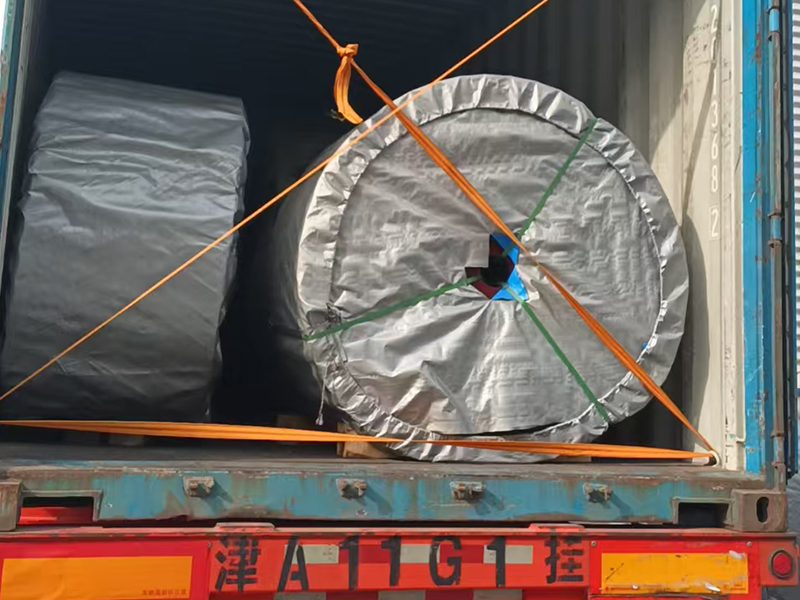

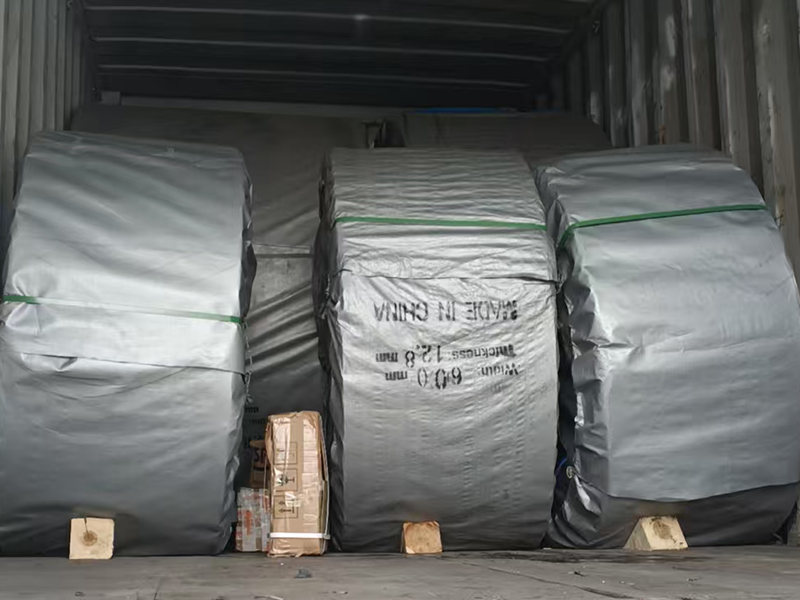

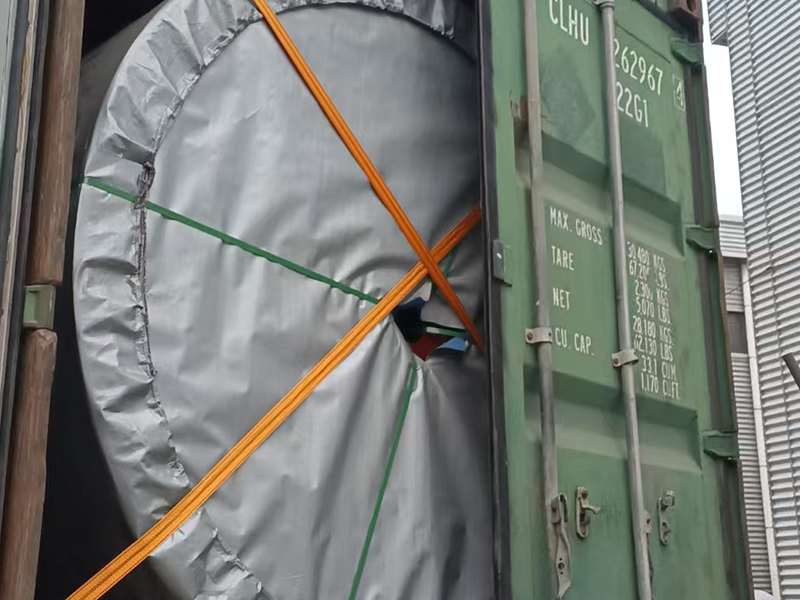

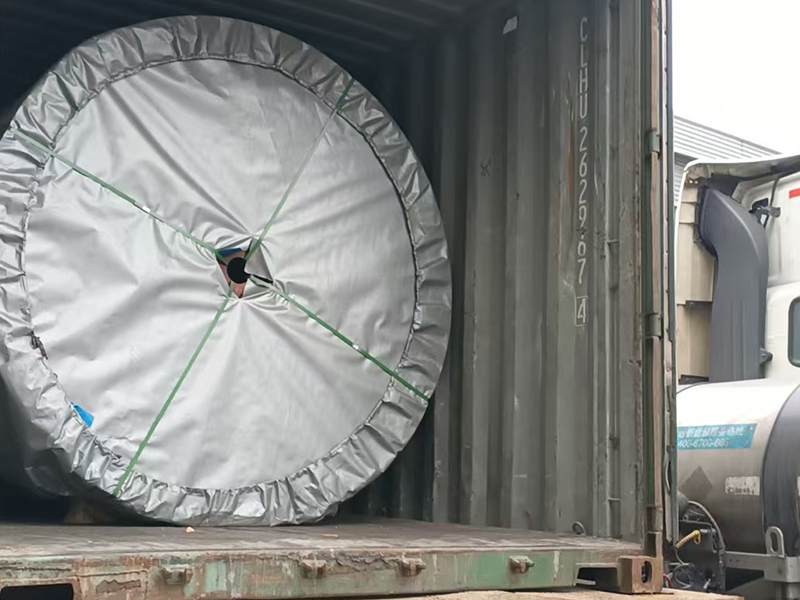

Shipping Scenarios
Frequently Asked Questions
1. Can I customize conveyor belts to meet my business needs?
►Yes, we are Specialized in the manufacturing of custom conveyor belts ， We focus on customized conveyor belt solutions. We work closely with our clients to customize products such as belt width, thickness, material composition, and various qualities based on their specific operational requirements. This ensures that our conveyor belts perform ideally in various industrial environments.
2. What payment methods do you accept?
►We offer flexible payment methods to meet customer needs. Common payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially suitable for large orders. We can also negotiate other payment methods based on mutual agreement.
3. What after-sales service do you provide? How do you guarantee your quality?
►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance, and maintenance advice 。We also provide regular follow-up services to ensure smooth product operation and long-term customer satisfaction! We have an in-house testing laboratory and adhere to the principle of quality assurance before shipment! For many years, we have been a supplier to internationally renowned companies, and our customers are located in various countries and industries, including mining, stone crushing, sand washing, ports, power plants, metallurgy, chemicals, coal, steel plants, cement plants, and construction, with our excellent quality widely praised.
4. How do I place an order? What is the delivery time?
►You can contact us via WeChat, WhatsApp, phone, email, and website to place an order. For regular models, delivery time is 5-7 days ，while the delivery time for other customized products depends on the product type and customization requirements.
5. Can I get samples for inspection and testing?
►Yes, samples can be provided for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of the belts and rollers.
6. Can I print my logo on the conveyor belt products?
►Yes, we are a custom manufacturer, supporting OEM and processing. Please inform us of your logo or design before mass production.
Why Choose Our Conveyor Belts?
1. Engineering Design and Consultation
Our conveyor belts are ideal for handling various heavy and abrasive materials in bulk material handling, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports, construction, etc. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for material handling problems and after-sales service for various applications.
2. Excellent Customer Service
We specialize in the production of heavy-duty (nylon, EP polyester, EE, NN) multi-ply fabric core rubber conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, herringbone conveyor belts, and circular conveyor belts. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we focus on providing customers with high-quality conveyor belts and professional services.
3. Customization
OEM is supported to meet all your needs, regardless of size. Even if you only have an idea, we will help you realize it.
We have a strong R&D team that can develop and produce products based on drawings or samples provided by customers.
4. Cost-effectiveness
Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.
Our Advantages
Excellent production equipment
The company has introduced multiple conveyor belt production lines and excellent production equipment.
Advanced technical strength
More than 500 engineering cases, advanced design and production processes, reliable product quality, and consistent customer praise.
Professional technical team
We have a professional scientific research team with industry experts and technicians with many years of experience.
Perfect after-sales service
A professional after-sales team is online 7*24 hours to provide you with star-rated intimate service, more peace of mind.

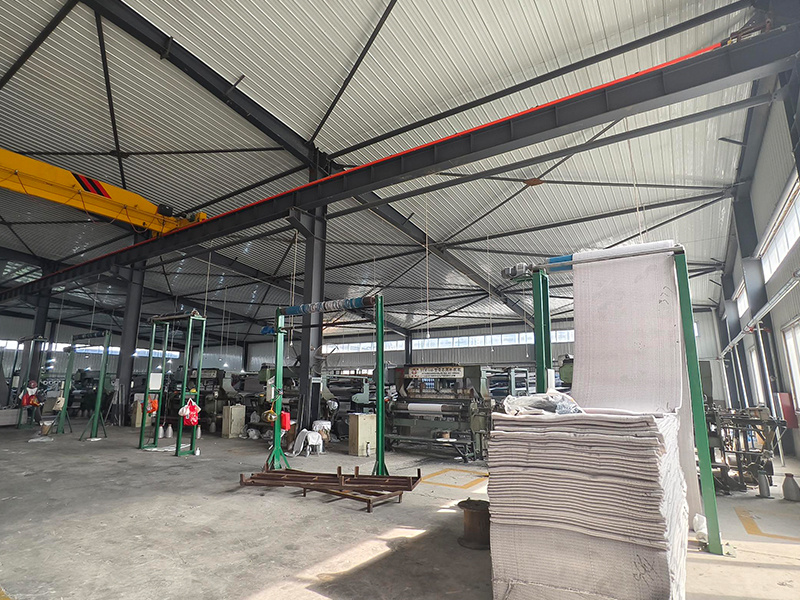

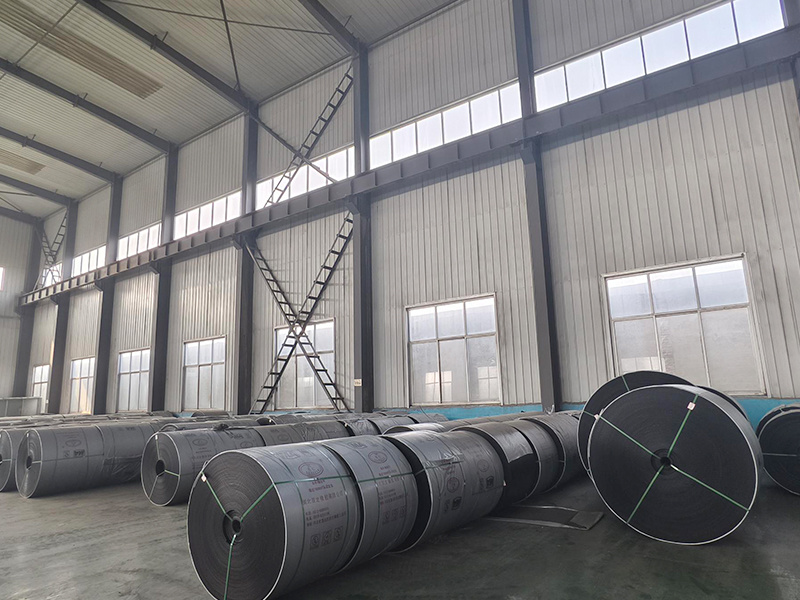

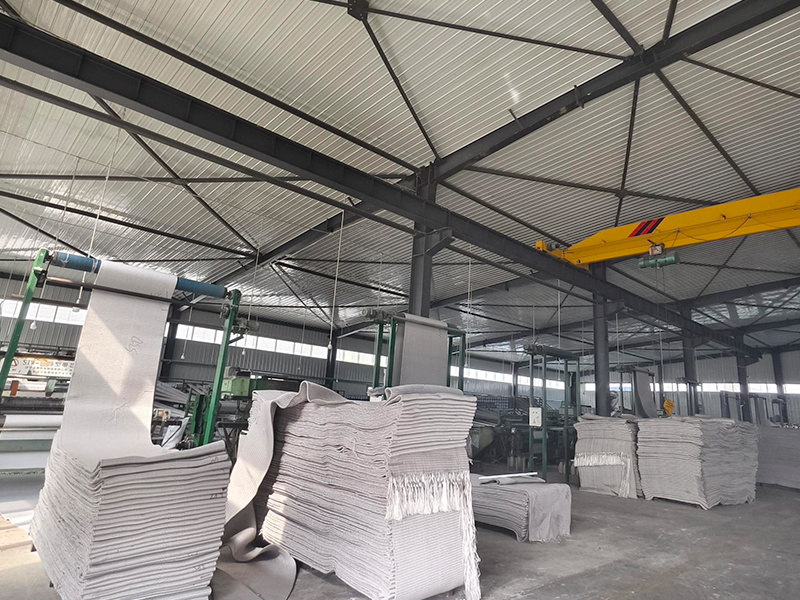

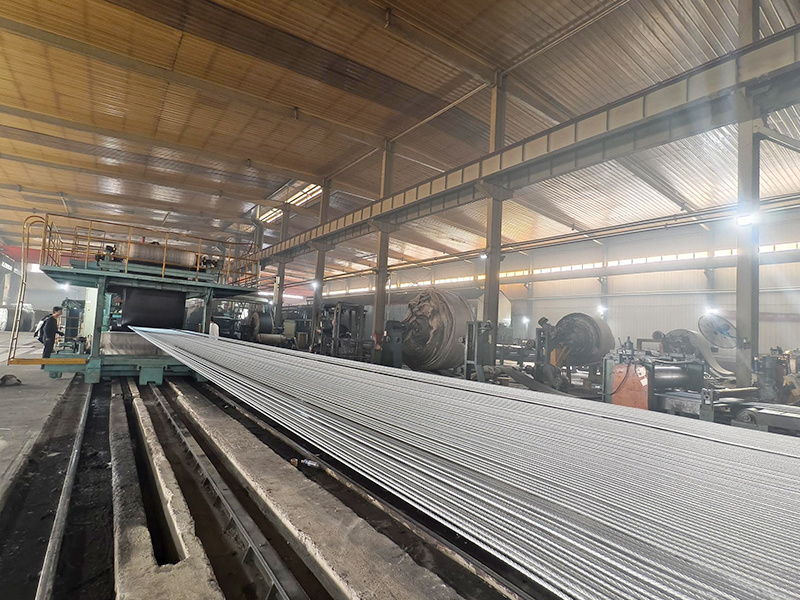

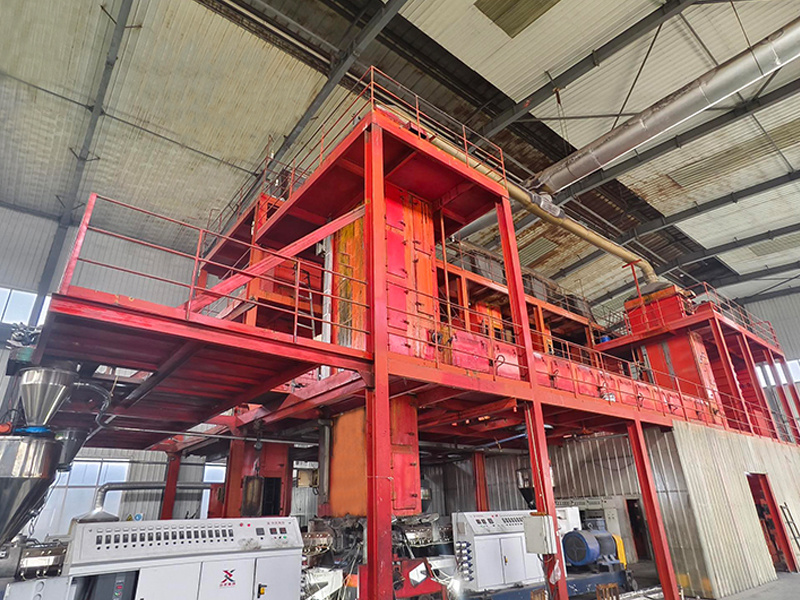

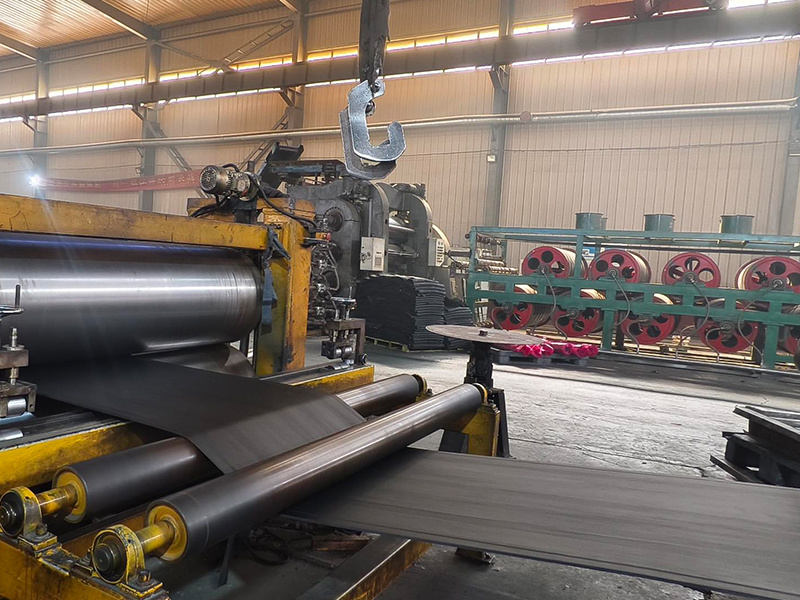

Production Capacity
FAQ
Can you accept small quantities?
Yes, small batches are accepted, and delivery is fast
Do you have pre-shipment inspection procedures?
Yes, we always test the product before delivery.
Can I take a sample for testing?
Yes, samples can be sent for testing before bulk orders.
What is the delivery time?
Inventory orders take 7-15 days, while OEM and ODM orders depend on the specific circumstances.
What are the payment terms?
Wire transfer or Letter of Credit, Western Union, Alipay, etc.
Can I have my own customized product?
Yes. OEM and ODM services are available, including design, logo, and packaging.
